Selecting the ideal linear drainage system for your facility or project can feel overwhelming. The choice usually comes down to two primary systems: A slot drain system or a trench drain system. While both manage surface water runoff, their design, installation requirements, maintenance, and hygiene capabilities differ significantly.
Understanding these key variations is crucial to selecting a system that ensures efficiency, longevity, and safety. Below is a comprehensive look at how they stack up:

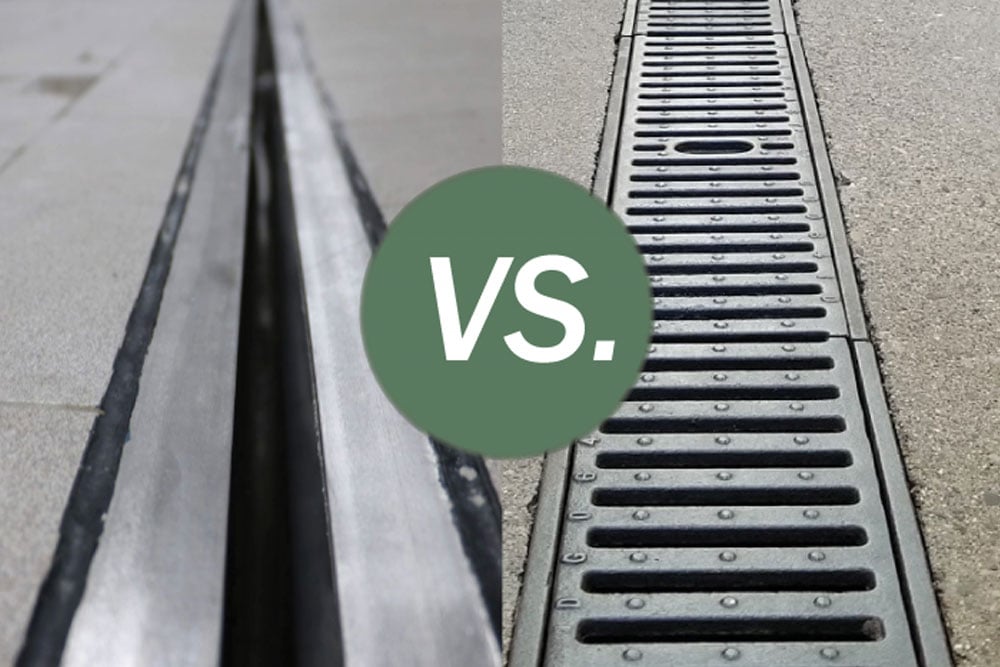

What Is The Difference Between A Slot Drain And A Trench Drain?
The fundamental difference between a slot drain and a trench drain lies in the surface footprint and the presence of a grate. A traditional trench drain system features a wide, open-top channel that requires a heavy grate cover to prevent debris accumulation and allow traffic to pass over it.
Conversely, a slot drain channel features a narrow, elongated slot opening built into the surface. The main drainage channel is fully encased beneath the flooring or hardscape, eliminating the need for a separate grate entirely.
Quick Comparison Table: Slot Drain Vs. Trench Drain
|
Feature |
Trench Drain System |
Slot Drain System |
|
Surface Footprint |
Wide opening covered by a grate |
Ultra-slim, discreet slot |
|
Grate Required? |
Yes (metal, plastic, or fiberglass) |
No (grate-free design) |
|
Primary Advantage |
High solids handling & large volume capacity |
High sanitation, low maintenance, & sleek aesthetics |
|
Maintenance Effort |
High (requires removing heavy grates to clean) |
Low (compatible with clean-in-place tools) |
|
Safety Risks |
Potential tripping hazard or broken grates |
Completely flush, heel-safe, and ADA compliant |

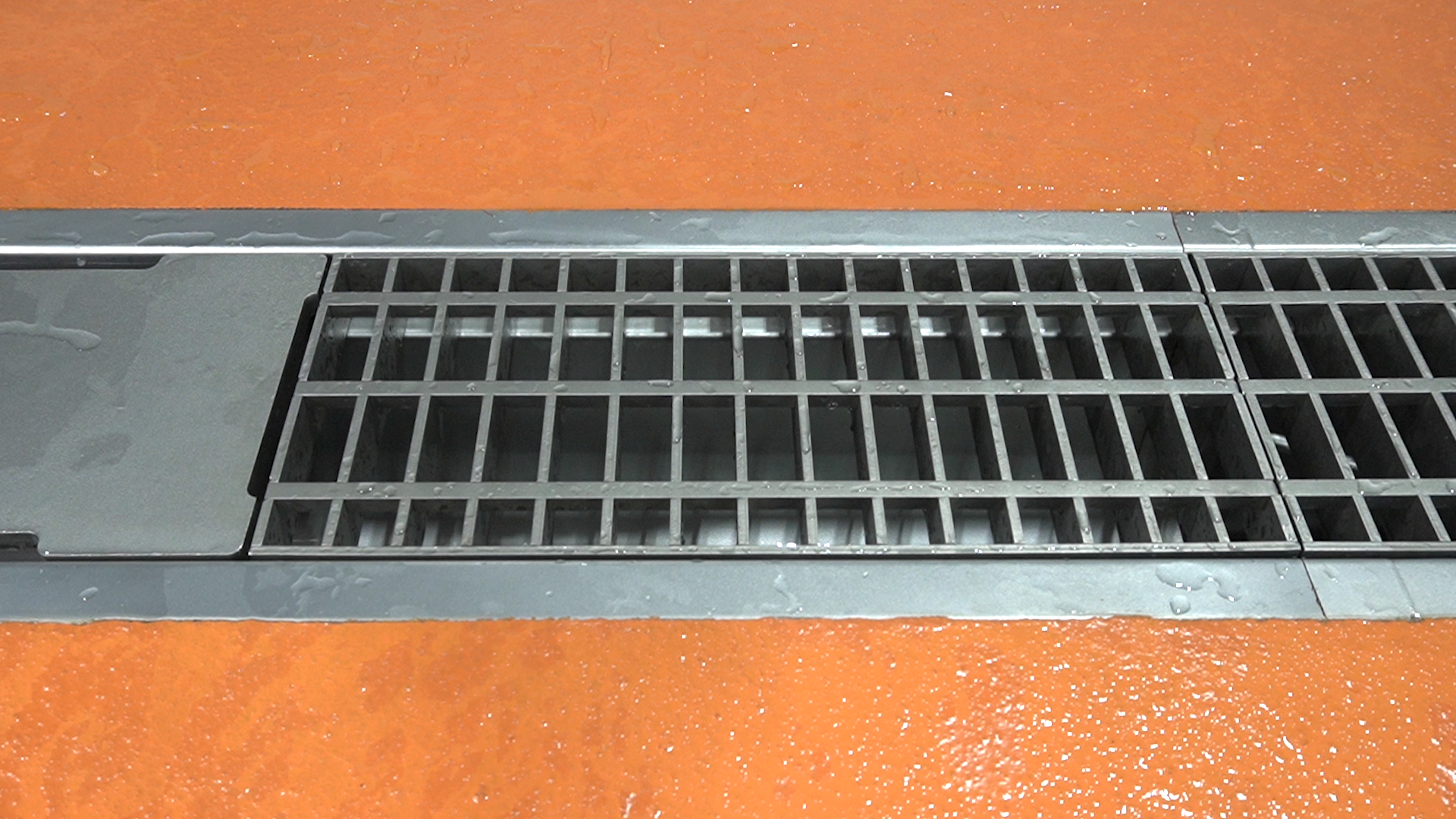

What Is A Trench Drain?
A grated trench drain consists of a U-shaped, V-shaped, or square-bottomed channel embedded into the floor. Because the top remains completely open to collect high volumes of liquid quickly, it must be covered with a removable grate. This design makes it a highly visible, heavy-duty drainage solution capable of handling significant water flows along with larger solid materials.

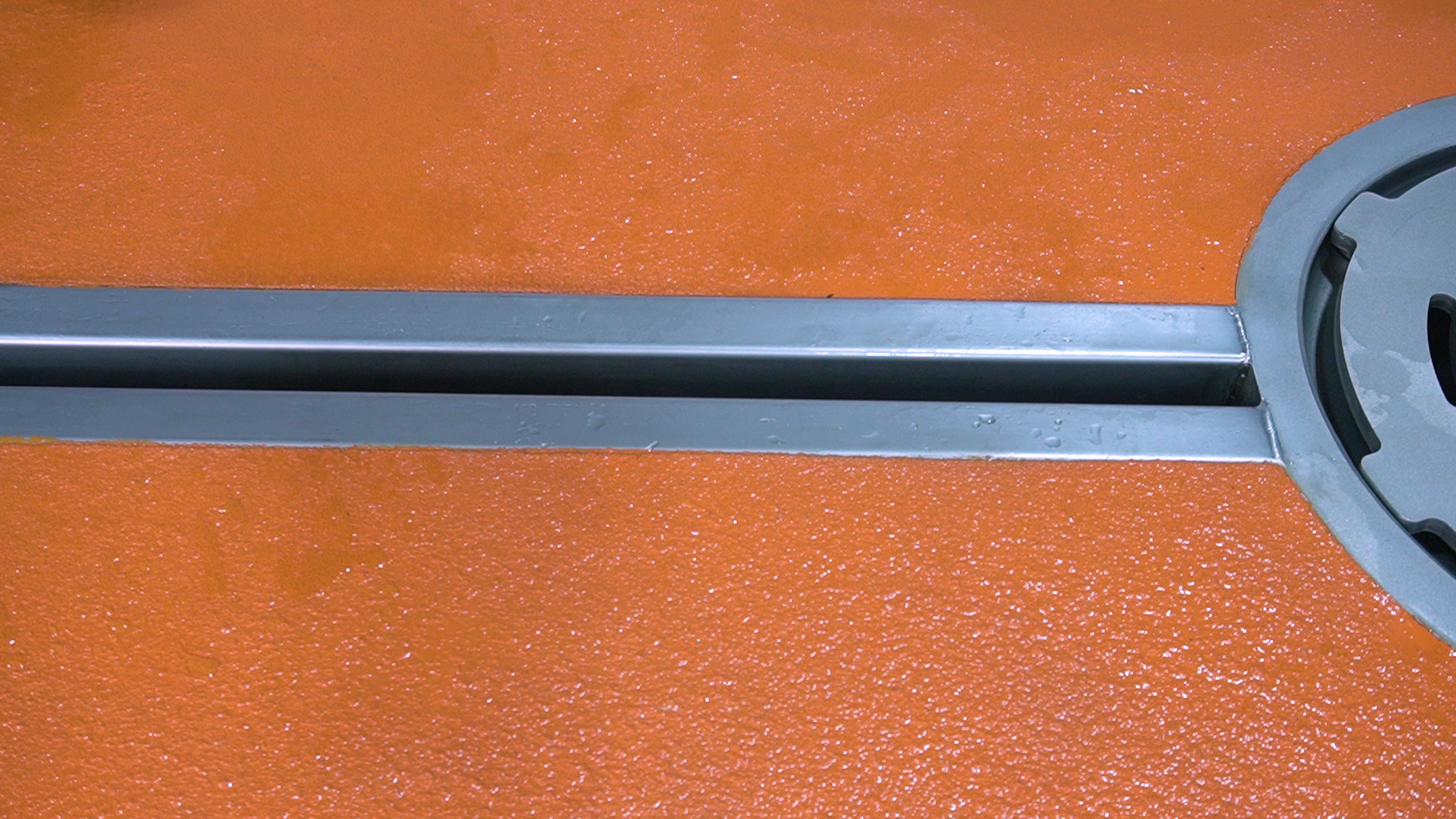

What Is A Slot Drain?
A slot drain is a specialized type of linear drainage system characterized by an incredibly narrow surface opening. The drain channel below the surface is usually shaped like a teardrop or inverted triangle, narrowing at the top to form the “throat” of the drain. It handles surface fluids through a subtle, linear slit while keeping the bulky infrastructure buried neatly beneath concrete, pavers, or asphalt.
Slot Drain Vs. Trench Drain: 6 Key Differences
1. Design & Visual Appearance
Trench drains are highly visible because of their wide channel mouths and contrasting grate designs. A slot drain, on the other hand, offers a minimalistic, modern aesthetic. It is virtually invisible, blending seamlessly into industrial floors, commercial plazas, and architectural landscapes without breaking up the visual flow.
2. Cleaning & Maintenance

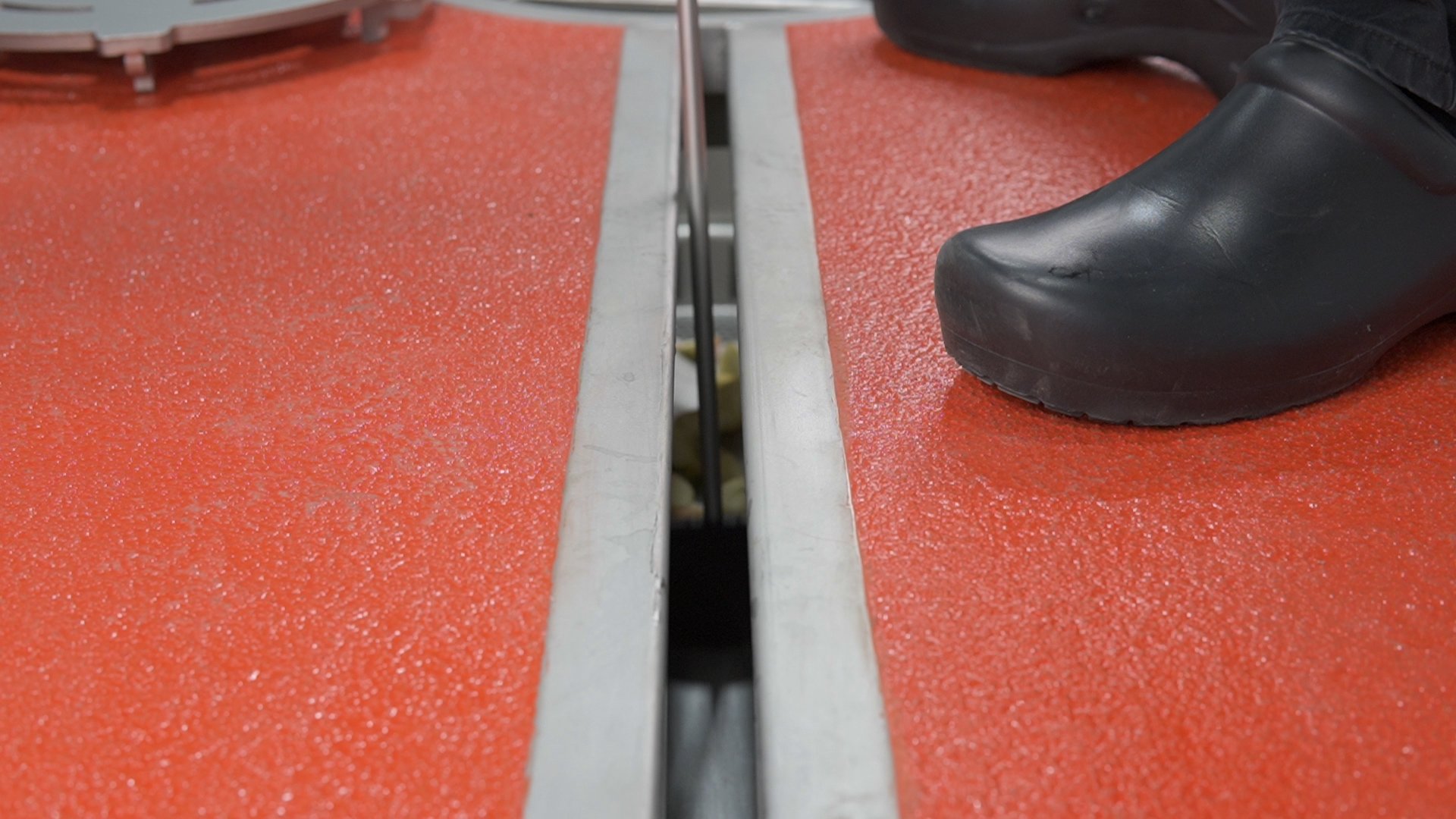

Maintenance crews frequently dread cleaning a trench drain with a grate. It requires manual removal of heavy, often dirty grate covers, scrubbing both the channel and the grates, and resetting them. This process can be annoying, as well as pose injury risks. Slot drains are grate-free, eliminating those physical hazards. They feature automated options like Flush Flo systems and dedicated cleaning paddles, allowing them to be cleaned much more efficiently.
3. Hygiene & Sanitation

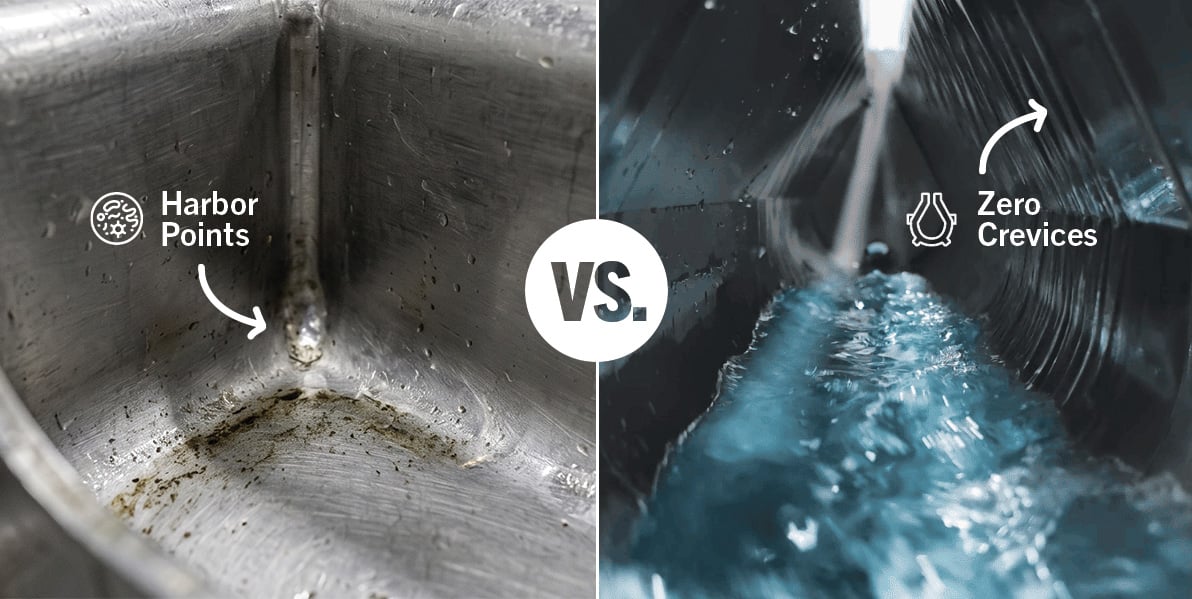

In facilities where food safety is paramount, trench drains can introduce risk. Traditional grates and square-bottom channels possess joints and sharp corners that can harbor bacteria like Listeria. A stainless steel slot drain features seamless, radius-edge (rounded) bottoms that prevent standing water and eliminate tight corners where organic matter can decay.
4. Odor Control & Drain Performance
Because trench drains have wide openings exposed to the air, accumulated waste can quickly release foul odors into your facility. Slot drains feature a significantly smaller surface air exposure, reducing odor transfer..
5. Load Capacity & Safety
Heavy forklift traffic can buckle, bend, or break traditional trench drain grates over time if they are not constructed with heavy duty grates. Heavy-duty slot drains are constructed with reinforced concrete casing and thick metal edges, safely achieving up to Load Class E or F ratings, making them capable of supporting heavy machinery and forklifts without flinching.
6. Long-Term Cost Of Ownership
While the upfront price of a slot drain system may sometimes vary compared to basic trench options, it pays dividends long-term. By avoiding the recurrent costs of replacing broken grates, lowering labor costs associated with routine cleaning, and avoiding costly shut-downs from bacterial contamination, slot drains stand out as the more cost-effective choice.
When A Trench Drain Makes Sense
Despite the advantages of modern alternatives, standard trench drain systems remain highly relevant for specific environments:

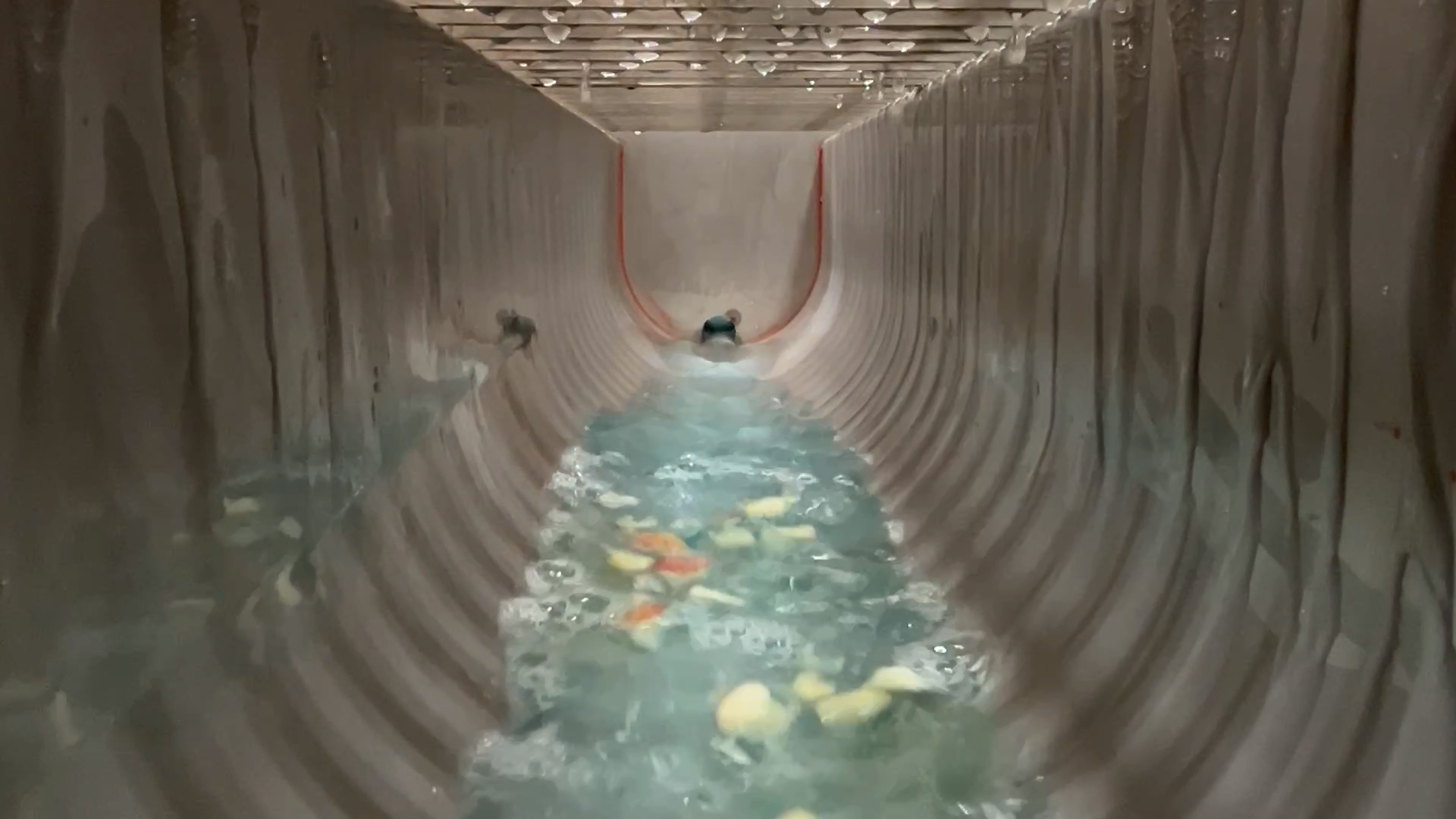

- High-Volume Solid Waste Handling: Facilities like slaughterhouses or primary waste processing plants that must drain large chunks of solid materials rely on trench channels.
- Extreme Torrential Runoff: External civil applications prone to massive, flash stormwater flooding benefit from the immediate, high-volume surface intake of a wide trench mouth.
When A Slot Drain Is The Better Choice
A slot drain is the better option in environments prioritizing safety, sanitation, and design:
- Food and Beverage Processing: Breweries, dairies, and commercial kitchens where hygiene inspections dictate success

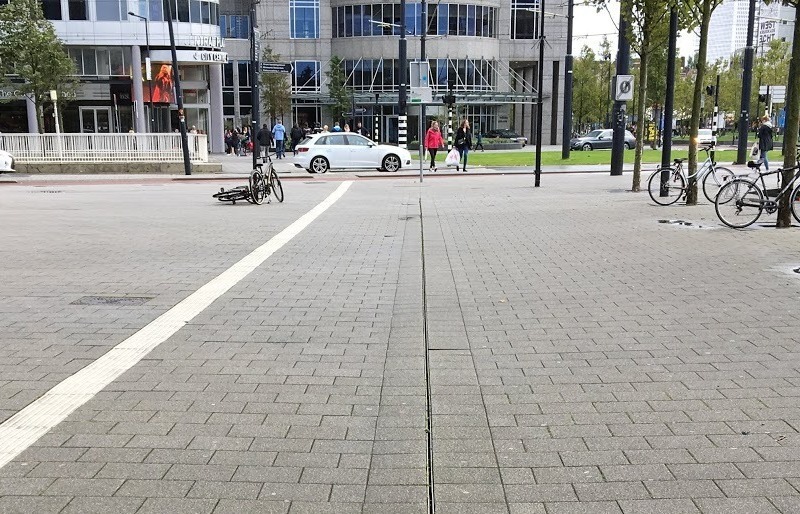

- Public and Commercial Spaces: Pedestrian plazas, parks, and pool decks where tripping hazards must be completely engineered out

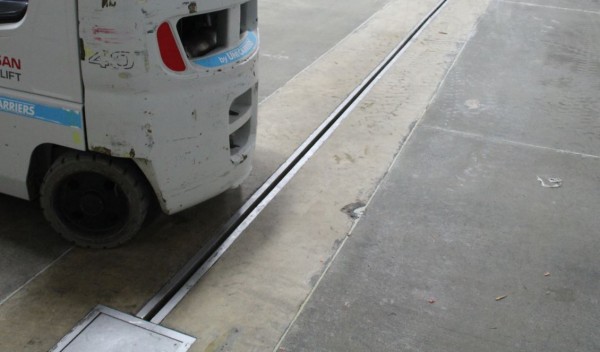

- Heavy Industrial Warehouses: Facilities utilizing heavy forklift traffic that would otherwise destroy standard grates
Slot Drain Vs. Channel Drain: Is There A Difference?
People frequently use the term “channel drain” interchangeably with trench drain. Broadly speaking, a channel drain refers to any linear drainage system that transports water through a manufactured channel rather than a sloped floor alone. Therefore, both slot drains and traditional trench drains fall under the umbrella of a linear drainage system, but a slot drain handles intake via a tiny hidden slit rather than an open, grated top.
Are Slot Drains ADA Compliant And Forklift Safe?
Yes. One of the greatest assets of a slot drain is its inherently safe profile. Models featuring a 0.5-inch slot opening are fully ADA compliant, ensuring wheelchairs, high heels, and pedestrian traffic can pass over seamlessly without getting stuck.
When manufactured from heavy-duty stainless steel and backfilled properly with concrete, their structural integrity allows them to handle extreme load capacities, making them exceptionally forklift safe for intense industrial operations.
Talk To Slot Drain Systems About The Right Drain For Your Facility
Every facility comes with its own unique set of flow rates, temperature shifts, sanitation standards, and structural layouts. Choosing the wrong drainage layout can lead to standing water, recurring repair bills, and/or compromised structural safety.
To explore customized, highly durable water management solutions tailored precisely to your infrastructure, visit us to buy trench floor drains and more today!
FAQ
What is the difference between a slot drain and a trench drain?
A trench drain features a wide, open channel covered by a removable grate. A slot drain features a narrow, open slot at the surface level with the main drainage pipe fully embedded underneath, requiring no grate cover.
Are slot drains better than trench drains?
For environments focusing on sanitation, easy maintenance, minimal downtime, and clean aesthetics, slot drains are typically a better option. However, trench floor drains can be a good choice if you need to evacuate significant volumes of thick, solid waste.
Can slot drains handle heavy traffic & heavy loads?
Yes. Thanks to reinforced frame designs, industrial stainless steel slot drains can withstand heavy forklift and commercial truck traffic, achieving up to Class E and F load ratings.
Are slot drains hygienic enough for food & beverage facilities?
Yes, they are highly hygienic. Built from corrosion-resistant stainless steel with rounded inner corners, they prevent bacterial colonies from organizing and support advanced clean-in-place maintenance tools.
Do slot drains clog more easily than trench drains?
No. Because the surface slot is restricted (typically 0.5 to 1.25 inches), objects large enough to clog the underground pipe are blocked from entering in the first place. Smaller debris that passes through the slot is easily swept along by the pre-sloped high-velocity internal channel.
