Key Takeaways
- Eliminated Hazard and Maintenance Burden: Removing the traditional grate removes the primary failure point in facility drainage. It eliminates loose parts, broken grates, and heavy lifting.
- Unparalleled Hygiene: Grateless drainage eliminates areas where bacteria, mold, and debris accumulate, drastically reducing contamination risks.
- High Structural Performance: Designed to handle extreme weight capacities (up to DIN EN 1433 Class F) and massive flow rates, proving that grateless doesn't mean compromised.
- Lower Lifetime Cost: Streamlined maintenance and quick cleanability translate to substantial long-term operational savings and minimal facility downtime.
What Grate-Free Drainage Means And Why It Matters
For decades, commercial and industrial facilities have relied on the traditional trench drain system to manage surface liquids and prevent standing water. These legacy systems feature a wide, open trench covered by heavy, removable metal or plastic grates. While functional, the grate itself has inherently been the weakest link in facility design. Standard trench drains introduce continuous hygiene risks, safety hazards, and labor-intensive maintenance cycles.
Choosing a grateless drainage configuration, frequently referred to as a slot drain system, reimagines fluid management by removing the grate entirely. Instead of a wide, exposed trench, a slot drain uses a narrow surface opening that feeds into an engineered, sub-surface stainless steel flow channel. This slim profile provides an obvious but ingenious solution to the age-old problem of grates.
By including slot drains, facility managers eliminate possible grate failures. There are no parts to bend or break under heavy traffic. The clean profile blends seamlessly with surrounding concrete flooring, providing a flush-fit and contributing to a safe and hygienic operation. The grateless design makes surface sanitation a built-in feature rather than an ongoing operational chore.
The Biggest Benefits Of Slot Drains Over Grated Systems
Let’s compare a modern slot drain to a traditional trench drain to find the advantages. The biggest benefit is the elimination of crevices that act as breeding grounds for dangerous pathogens like Listeria and Salmonella. Grated profiles trap organic material, making them difficult to sanitize. Slot drains have rounded corners, and no-niche designs allow them to be easily cleaned in a fraction of the time it takes to clean trench drains.

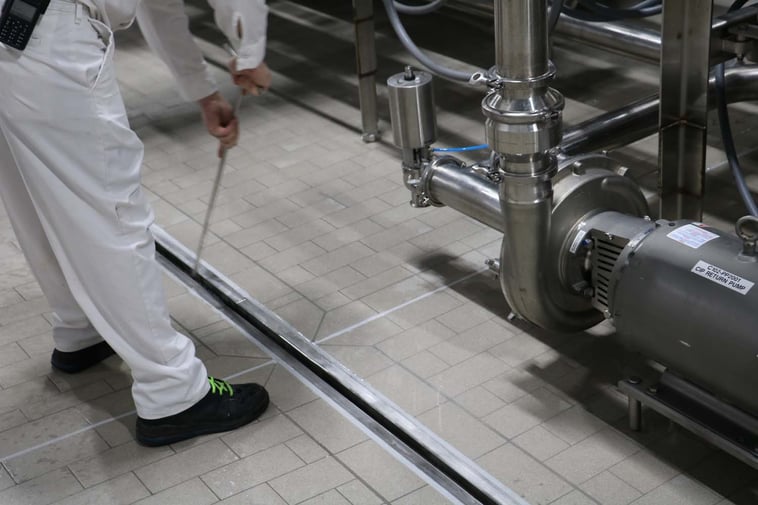

Cleaning a traditional trench drain system requires employees to manually lift heavy, bacteria-laden grates, scrub them individually, wash out the trench basin, and reinstall them. This process takes a lot of time and manual labor, increases the risk of workplace injuries, and causes costly operational downtime. Conversely, cleaning a slot drain is remarkably straightforward. Facility operators can clear debris and sanitize the inner channel in a fraction of the time using a simple set of tools.
The long-term maintenance burden is reduced exponentially, saving facilities thousands of dollars annually compared to conventional trench drains. The result is savings on replacement parts, specialized sanitation chemicals, and manual labor hours.
Where Grate-Free Slot Drains Perform Best

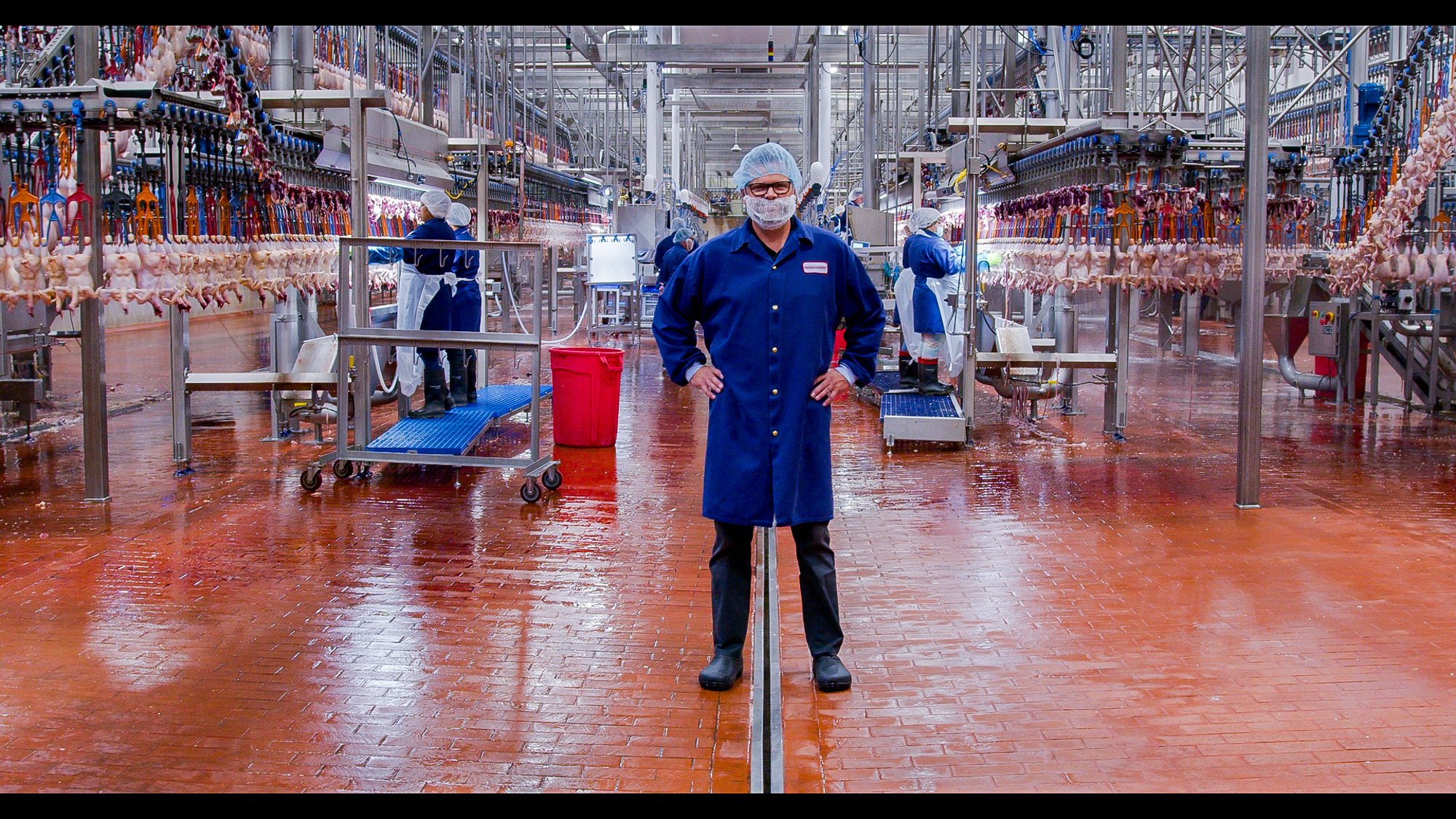

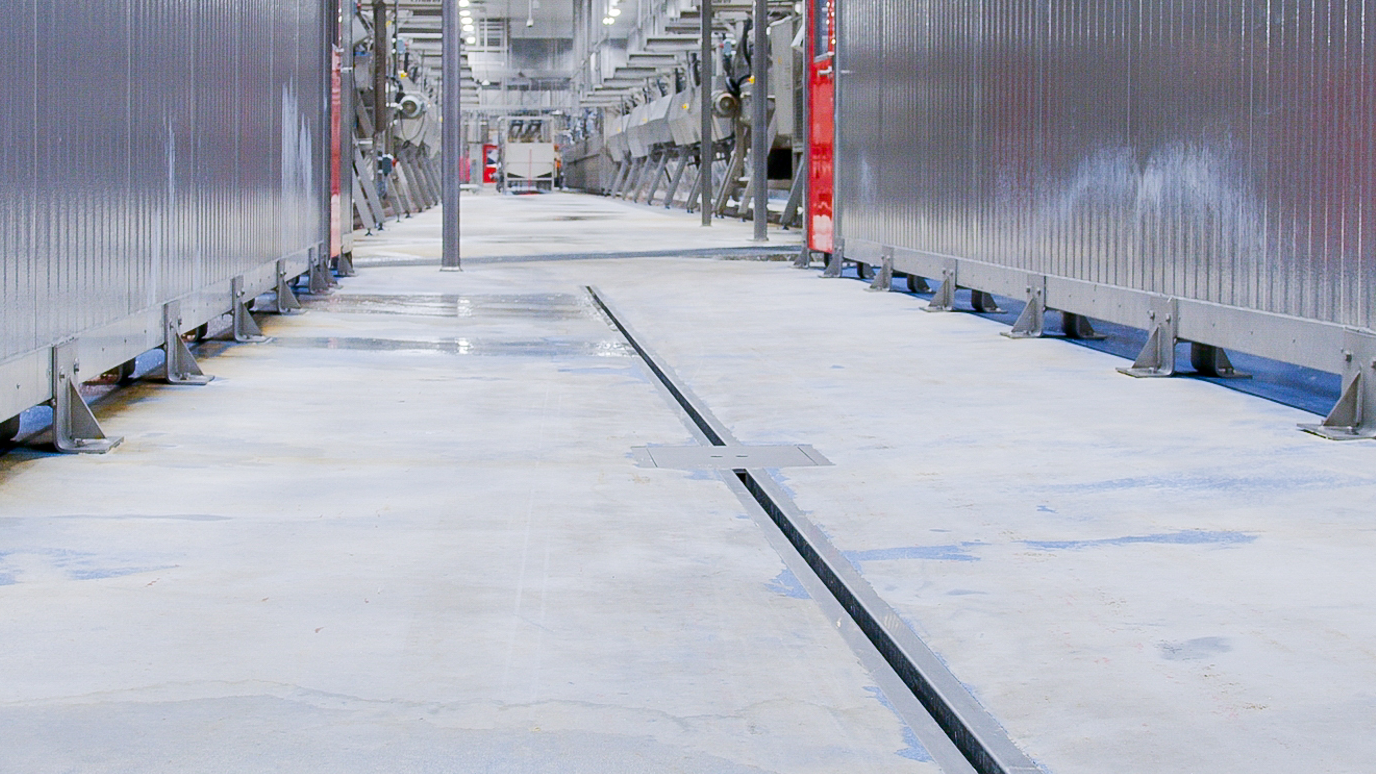

Grate-free drainage systems are highly versatile, delivering exceptional performance across demanding industrial environments and high-traffic commercial spaces alike. In food and beverage processing facilities, commercial kitchens, and large-scale breweries, hygiene is the number 1 priority. Implementing an advanced solution like our 6000 PLUS Series slot drain provides an ultra-hygienic, TIG-welded stainless steel profile that eliminates standing water and prevents structural bacterial colonization, ensuring strict compliance with safety audits.
These systems are equally valuable in heavy industrial environments where continuous vehicle traffic and harsh chemicals are present. In automotive facilities, installing specialized auto repair drainage systems protects floors from oil and chemical accumulation while effortlessly supporting heavy vehicles. Similarly, optimizing the car wash drainage role ensures rapid fluid removal and robust grit handling, preventing water pooling in high-volume washdown zones.
For municipal, architectural, and commercial public projects, the visual appeal of a slot drain is a major selling point. Unlike ugly, industrial-looking grates that disrupt architectural continuity, slot drains offer an elegant, minimalist line that integrates seamlessly into public plazas, pedestrian walkways, and modern building perimeters, maintaining clear sightlines without sacrificing heavy-duty fluid-capture capabilities.
Design, Installation, And Performance Considerations
A common misconception among specifiers is that choosing a grateless drainage configuration means sacrificing hydraulic capacity or durability. In reality, a properly engineered slot drain system delivers exceptional flow capacity. For instance, heavy-duty industrial configurations like the 8000 series slot drain can efficiently manage large volumes of water, making them the perfect high-capacity stormwater drainage in external applications or intense washdown flows inside production plants where standard trench drains would overflow.
When selecting and designing a drainage layout, specifiers must evaluate several core factors to optimize long-term operational success:
- Flow Capacity and Slot Sizing: Slot widths typically range from 1/2-inch to 1-1/4 inches. The correct dimensions are determined by calculating peak fluid volumes to prevent any surface pooling.
- Material Options and Sanitation Standards: For sterile environments, 304 or 316 marine-grade stainless steel is standard to resist pitting, chemical corrosion, and intense heat.
- Load Requirements: Industrial facilities require systems that withstand extreme weight. Premium slot drains carry the highest load class ratings, certified to support heavy machinery, forklifts, and commercial transport vehicles without structural bowing.
- Installation and Project Planning: Whether executing a brand-new construction installation or handling a complex facility retrofit, proper sloping and seamless alignment with the concrete pour are vital to ensure long-term structural integrity and optimal hydraulic flow down to the connection with the sub-floor catch basin.
To ensure a seamless installation, engineering teams must carefully plan the structural integration of the drain channel within the surrounding concrete slabs. A flawed installation can lead to uneven joints and poor flow mechanics, whereas a certified, professional installation ensures decades of worry-free operation. Furthermore, choosing the correct layout during the design phase simplifies the physical installation, saving contractors time and reducing overall labor costs on the job site. When a facility commits to a high-quality installation, it is investing in long-term floor durability that far outlasts traditional trench drains.
Choose Slot Drain Systems For Grate-Free Drainage Solutions
Upgrading your facility's infrastructure to a grateless drainage layout requires a trusted partner with proven engineering expertise. Slot Drain Systems is the industry leader, pioneering advanced fluid management solutions designed to eliminate operational headaches, maximize facility safety, and lower maintenance overhead. From heavy-duty manufacturing plants to pristine food processing environments, we provide standard and custom configurations engineered to fit your specific operational demands.
Don’t let broken grates, ongoing maintenance costs, and hygiene liabilities slow your operations down. Contact the expert technical team at Slot Drain Systems today for specialized product guidance, customized specification sheets, and comprehensive project support. Let us help you design a cleaner, safer, and more efficient floor layout with a next-step consultation tailored exactly to your next project.
Frequently Asked Questions
What is a grate-free drain?
A grate-free drain is a linear drainage system featuring a narrow surface slot that opens directly into a below-ground fluid channel. Unlike traditional systems, it requires no removable metal or plastic grate covers, eliminating loose components, surface hazards, and deep dirt traps.
Are slot drains easier to clean than trench drains with grates?
Yes, significantly. Slot drains eliminate the exhausting labor of lifting and scrubbing heavy, contaminated grates. The continuous internal channel can be cleaned rapidly using automated Clean-In-Place (CIP) flushing systems, simple flushing mechanisms, or manual paddle brushes, drastically cutting maintenance labor hours.
Do slot drains handle heavy water flow?
Absolutely. While the surface opening is narrow, the subsurface stainless steel channel is wide and precision-sloped. This design uses advanced fluid dynamics to capture and move large volumes of fluid, giving it the capability to handle stormwater surges and industrial washdowns.
Are grate-free slot drains good for food & beverage facilities?
They are the premier choice for these sectors. Because they lack grates, there are no hidden gaps or crevices where hazardous bacteria like Listeria can grow. Built from food-grade stainless steel, they provide unmatched hygiene and seamlessly meet rigid food safety and sanitation compliance standards.
Can slot drains support heavy traffic & equipment loads?
Yes, premium slot drain designs are built to endure the most demanding industrial environments. They feature reinforced steel frames embedded directly into the concrete floor, allowing them to earn the highest load ratings and safely support forklifts, heavily loaded trucks, and industrial equipment.
How do I know if a slot drain is right for my project?
If your facility prioritizes strict sanitation, requires low-maintenance costs, demands high durability under heavy wheel traffic, and/or prefers a clean, modern aesthetic, a slot drain is an ideal match. Consulting with our application specialists can help you determine the optimal slot sizing, material, and layout for your project.
